ATG12 antibody [GT948]

Non-transfected (–) and transfected (+) 293T whole cell extracts (30 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with ATG12 antibody [GT948] (GTX629816) diluted at 1:500. The HRP-conjugated anti-mouse IgG antibody (GTX213111-01) was used to detect the primary antibody.

ATG12 antibody [GT948] detects ATG12 protein by Western blot analysis.
A. 30 μg Neuro2A whole cell lysate/extract
B. 30 μg GL261 whole cell lysate/extract
C. 30 μg C8D30 whole cell lysate/extract
D. 30 μg NIH-3T3 whole cell lysate/extract
E. 30 μg BCL-1 whole cell lysate/extract
F. 30 μg Raw264.7 whole cell lysate/extract
G. 30 μg C2C12 whole cell lysate/extract
12 % SDS-PAGE
ATG12 antibody [GT948] (GTX629816) dilution: 1:1000

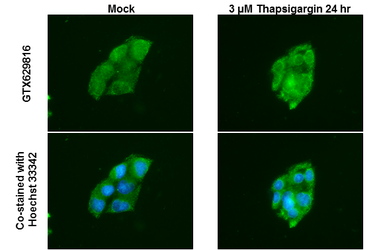

ATG12 antibody [GT948] detects ATG12 protein at autophagosome  by immunofluorescent analysis.
Sample: Mock and treated HepG2 cells were fixed in ice-cold MeOH for 5 min.
Green: ATG12 stained by ATG12 antibody [GT948] (GTX629816) diluted at 1:500.
Blue: Hoechst 33342 staining.

ATG12 antibody [GT948] detects ATG12 protein by Western blot analysis.
A. 30 μg 293T whole cell lysate/extract
B. 30 μg A431 whole cell lysate/extract
C. 30 μg HeLa whole cell lysate/extract
D. 30 μg HepG2 whole cell lysate/extract
12 % SDS-PAGE
ATG12 antibody [GT948] (GTX629816) dilution: 1:1000
