VRL1 antibody

WB analysis of rat brain membrane (lanes 1 and 2) and RBL (lanes 3 and 4) lysates using GTX16610 VRL1 antibody preincubated with or without immunogen peptide.
Dilution : 1:200

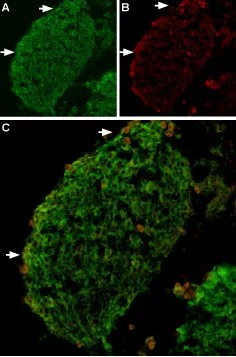

IHC-Fr analysis of mouse DRG tissue using GTX16610 VRL1 antibody.
Panel A : TRPV2 (green) appears in patches along the perimeter of the DRG (arrows).
Panel B : Neurons containing neurofilament 200 (red) are scattered in the DRG, also in patches (arrows).
Panel C : Merge of the two panels shows that the spatial distribution of neurofilament 200 and TRPV2 expression overlaps. However, DRGs showing robust expression of neurofilament 200 do not contain TRPV2.

IP analysis of RBL cell lysate using GTX16610 VRL1 antibody. The upper arrow indicates TRPV2 while the lower arrow indicates the IgG heavy chain. WB was performed with the GTX16610 antibody.
IP reaction : 7.5 μg
Lane 1 : RBL lysate
Lane 2 : Lysate immunoprecipitated with Anti-TRPV2   Antibody
Lane 3 : Lysate immunoprecipitated with pre-immune rabbit serum
