Zika virus NS3 protein antibody

Sandwich ELISA detection of non-transfected and transfected 293T whole cell extracts using antibodies as below.

Capture: Zika virus NS3 protein antibody (GTX133320) (5 μg/mL)
Detection: HRP-conjugated Zika virus NS3 protein antibody [HL4878] (GTX644943) (1 μg/mL)
Please notice that GTX644943 needs to be conjugated to HRP to function as the detection antibody when paired with GTX133320. Please contact us for custom HRP-conjugated antibody.

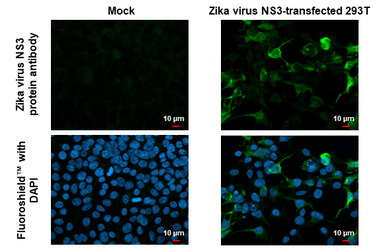

Zika virus NS3 protein antibody detects Zika virus NS3 protein protein by immunofluorescent analysis.
Sample: Mock and transfected Expi293 cells were fixed in 4% paraformaldehyde at RT for 15 min.
Green: Zika virus NS3 protein stained by Zika virus NS3 protein antibody (GTX133320) diluted at 1:500.
Blue: Fluoroshield™ with DAPI (GTX30920).

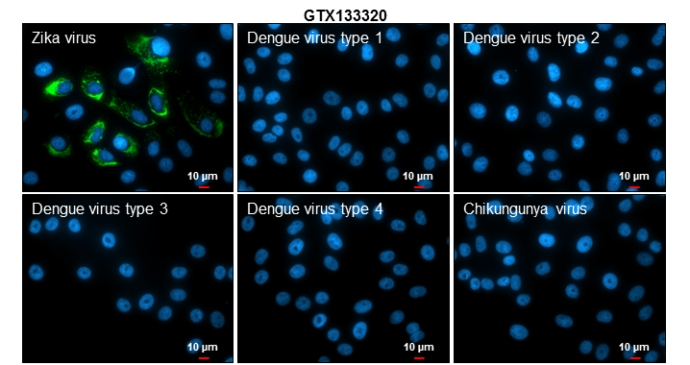

Immunofluorescent analysis of arboviruses infected cells using Zika virus NS3 protein antibody (GTX133320).
Samples: EUROIMMUN Arboviral Fever Mosaic 2 slide (FR 2668-1010-1).
Green: Zika virus NS3 protein antibody (GTX133320) diluted at 1:500.
Blue: Hoechst 33342 staining.
Scale bar = 10 μm.

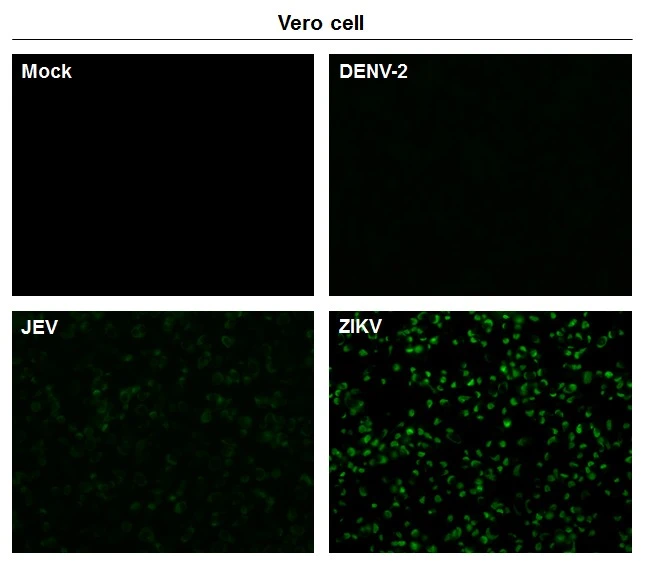

Immunofluorescent analysis of non-infected and infected vero cells using Zika virus NS3 protein antibody (GTX133320).
Green: Zika virus NS3 protein antibody (GTX133320) diluted at 1:500.

Non-infected (–) and infected (+) Vero whole cell extracts were separated by gradient gel, and the membrane was blotted with Zika virus NS3 protein antibody (GTX133320) diluted at 1:2500.
